Isolmant UnderSpecial Radiante BV

Isolmant UnderSpecial Radiante BV

Isolmant UnderSpecial Radiante BV

Isolmant UnderSpecial Radiante BV

High performance resilient Isolmant Special polyethylene layer joined on the upper side to a radiant tear-proof and aluminate film and on the lowerside to FIBTEC XF3 (special needle-worked fibre produced according to specifications designed to provide a better noise reduction). It provides excellent impact sound and airborne insulation for horizontal partitions.



Isolmant UnderSpecial Radiante BV is specific for floating screeds as provided by UNI 11516:2013 standards with any type of slab. Particularly suitable for installation in the presence of a floor heating or cooling system (the insertion of a resilient mat is always required in these applications as the thermal panels do not perform an acoustic function), where a vapour barrier is required.



When installed under the radiant system panel, it requires a radiant flooring finishing with 5 cm average thickness.



Thickness 10 mm.

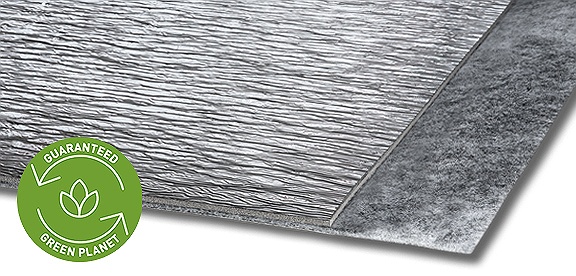

Immagine 1

Isolmant GreenPlanet

Blue Angel

REMADE certified recycled content (cert. IT335452) compliant with Criterion 2.5.8 of CAM 2022;

Basso impatto ambientale

Low environmental impact.

Riciclabile e smaltibile

Can be disposed according to EWC No. 170604 insulation materials NON-HAZARDOUS plastics.

Contribuisce a conseguire crediti

It contributes to obtaining credits for LEED or ITACA protocols and complies with the CAM building regulations.

Advantages

Product advantages

Eccellente isolante acustico

Excellent acoustic impact sound insulation.

Specifico per impianti radianti

Specific in the presence of underfloor heating/cooling systems.

Buon isolante acustico

Optimal airborne noise insulation.

Il contatto con l'acqua

Contact with water does not compromise performance or characteristics.

Utilizzabile sia in ristrutturazione che nelle nuove costruzioni;

Suitable for use in both renovation and new construction.

Inalterabile nel tempo

Inalterable over time and unlimited durability.

Bassa conducibilità termica

Low thermal conductivity.

Inattaccabile da muffe o insetti

Resistant to mould or insects.

Presenza film alluminato

Presence of a reflective film with a radiant function, anti-maple and vapor barrier.

Application advantages

Facile da posare

Easy to lay product.

Resistenza lacerazione

High resistance to foot traffic and tearing.

Prodotto battentato

Product with overlaps.

Inalterabile agli alcali

Unalterable to the alkali of the screed.

Facile da rifilare

Easy to trim: can be easily cut with a utility knife or box cutter.

Item Specifications

Resilient layer is made of reticulated expanded closed-cell polyethylene, with on the upper side to a radiant tear-proof and aluminate film while on the under sidewith a special needle-worked fibre that is conceived to enhance the acoustic performance (Isolmant UnderSpecial Radiante BV). Nominal thickness 10 mm. Dynamic stiffness s't =8 MN/m3, s'= 20 MN/m3 (certified values). Impact sound insulation .Lw = 36 dB, water vapour resistance sd >100m. To be positioned with the reflected film side facing up. Product with overlaps.

Item Specifications Copy item specification

Installation information

1/2 - Installation of Isolmant Radiante

Isolmant Radiante is specifically designed to be installed under the panels for hot/cold water underfloor heating and on top of a systems levelling screed.



These sheets must be accurately joined by using their overlapping fabric and sealed with Isolmant Nastro Alluminio. It is also necessary to be careful to start flush with the wall with the polyethylene, avoiding leaving visible strips of fibre near the walls: the fibre, in fact, absorbs the cement and stiffens, generating a dangerous and continuous acoustic bridge.

1/2 - Installation of Isolmant Radiante
Product with overlaps for easy installation.

2/2 - Installation of Fascia Perimetrale:

To avoid acoustic bridges, the use of Isolmant Fascia Perimetrale Tecnica Radiante is recommended. This product should be installed along the entire perimeter of the room without interruption. In particular, in systems with underfloor heating or cooling, the use of Isolmant Fascia Perimetrale Radiante is recommended, which will be fixed to the wall using a medium-strength tape by making this tape adhere properly to the insulating underlay (the adhesive side of this strip should be positioned downwards) and by spreading the transparent film so that it is stapled under the first passage of the pipe.



The height of the strip must be such as to ensure that it exceeds the floor level by approximately 2/3 cm. This excess must be trimmed after laying the floor.

2/2 - Installation of Fascia Perimetrale:
The excess of the flanking strip must be trimmed only after the flooring has been laid and grouted.
