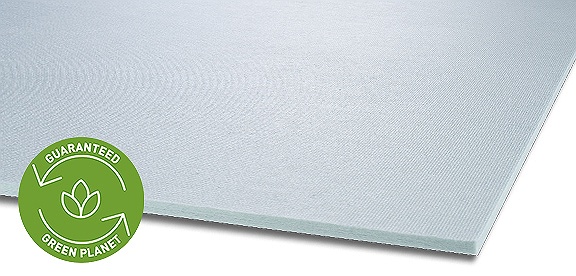

Resilient panel for impact sound reduction, made of HD polyester fibre FIBTEC PHD (140 kg/m3 ) for impact sound insulation, in particular with dry screed system. Non toxic, ecological, with unlimited duration.



Isolmant Fibra HD is specifically designed for the creation of “floating screeds” in accordance with UNI 11516:2013, in the presence of any type of slab, in particular for the creation of dry systems with granular substrates and gypsum fibre, fibre cement or wood-based panels. It is also suitable for laying under traditional sand and cement screed after a PE separating film has been laid before casting.



Specific for horizontal structures with finishing screed at least 3 cm thick.





Thickness 10 mm.

Immagine 1

Isolmant GreenPlanet

Remade

REMADE certified recycled content (cert. IT335452) compliant with Criterion 2.5.8 of CAM 2022.

Low environmental impact.

Low environmental impact.

Test VOC

Result to VOC emission test: - VOC A+.

Contribuisce a conseguire crediti

It contributes to obtaining credits for LEED or ITACA protocols and complies with the CAM building regulations.

recyclable

Can be disposed according to EWC No. 170604 insulation materials NON-HAZARDOUS plastics.

Advantages

Product advantages

Alta densita

High density which makes it suitable for dry subfloors.

Inattaccabile da muffe o insetti

Impervious to mould or insects.

Utilizzabile sia in ristrutturazione che nelle nuove costruzioni;

Suitable for use in both renovation and new construction.

Non tossico

Non-toxic and ecological.

Bassa conducibilità termica

Low thermal conductivity.

Inalterabile nel tempo

Unlimited durability and unalterable over time.

Application advantages

Facile da posare

Easy to install.

Leggero

Lightweight and easy to handle product.

Item Specifications

gical, with unlimited duration. Dynamic stiffness: s' = 13 MN/m3 . Panel thermal resistance: Rt = 0.313 m2 K/W. Nominal thickness 10 mm. Classified A by Remade in Italy for recycled content and compliant with the requirements of the CAM Decree 2022.

Item Specifications Copy item specification

Installation information

1/3 - Laying of the granular levelling layer

Isolmant Fibra HD must be installed on flat and uneven surfaces. It is advisable to spread a film with a vapor barrier, in order to protect the sheets of the dry system from any rising damp.



Once the installations have been laid, the granular layer must be levelled out to the desired height, following the manufacturer's instructions for correct laying, and a flat, rough and perfectly horizontal surface must be obtained, ensuring that there is at least 1 cm of fill above the pipes.

1/3 - Laying of the granular levelling layer

2/3 - Isolmant Fibra HD installation

Install Isolmant Fibra HD panels well side by side, with staggered joints, taking care to completely cover the entire laying surface and guarantee the continuity of the resilient layer.



HD Fiber sheets are light and easy to handle. Dry substrates represent an extremely valid solution for the renovation of existing floors; laying without adhesives or screeds cast on site also allows you to eliminate downtime on site due to drying and curing.

2/3 - Isolmant Fibra HD installation

3/3 - Dry lining slabs installation

It is advisable to install dry slabs (gypsum fibre, fibre cement or wood-based panels) on Isolmant Fibra HD taking care to offset the joints with respect to the panels of resilient material below. Please refer to the manufacturer's instructions for correct installation and for determining the thickness of the slabs according to the loads and intended use of the room.
