Isolmant TOP Incollapavimento

Isolmant TOP Incollapavimento

Isolmant TOP Incollapavimento

Isolmant TOP Incollapavimento

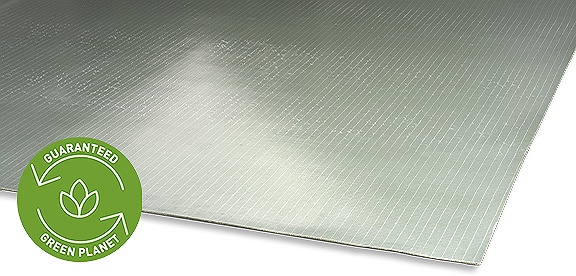

Insulating mat made of high-density viscoelastic heat-conductive material, coated with a specific adhesive layer specifically designed for direct gluing of wooden flooring, laminates and LVT and to maintain the adhesive performance unchanged over time. Thanks to its low thermal resistance, Isolmant Incollapavimento allows floors to be laid even on radiant systems with low inertia/low thickness. The adhesive layer is protected by a silicone film which must be removed during application.



Product of the SYSTEMIC line, the Isolmant Top Incollapavimento acoustic system is a high-quality system that combines two functions in a single solution: acoustic performance and the flooring fixing system. It is ideal for reducing impact noise and reflected noise generated on flooring.



Floor system: specific for the hybrid laying of parquet



Nominal thickness: 1,8 mm.

Immagine 1
Menu

Isolmant GreenPlanet

blue angel

It has been awarded the Blue Angel eco-label "The German Ecolabel";

Privo di

Free from plasticizers, asbestos, formaldehyde, halogens and heavy metals. It is solvent-free and does not contain other substances that deplete the ozone layer;

Test VOC A+

Contains no volatile substances VOC A+;

Contribuisce a conseguire crediti

It complies with the CAM construction regulations regarding acoustic performance, the percentage of recycled materials and the absence of hazardous substances.

Riciclabile e smaltibile

Recyclable and disposable according to CER n. 170604 NON-DANGEROUS plastic insulating materials;

Sustainability

Advantages

Product advantages

Buon isolante acustico

Excellent acoustic insulation against both impact noise and reverberation noise (RWS).

Reazione al fuoco

Fire reaction class Bfl- s1.

Superficie adesiva

Features high-strength adhesive surface for direct bonding of finish materials.

Resistenza a compressione

High compressive strength (CS).

Very low thermal resistance.

Very low thermal resistance.

Application advantages

Taglio facile

Easily cut with a utility knife or cutter, without generating dust.

Sistema di posa

Quick and easy installation system.

film BV sotto materassino

Allows placement of vapor barrier film beneath the underlayment.

Item Specifications

Resilient layer made of HD thermally conductive viscoelastic material, adhesive-coated with a silicon film (Isolmant Top Incollapavimento type). To be installed with the adhesive side facing upwards. Reaction to fire class Bfl-s1. Nominal thickness 1.8 mm.

Item Specifications Copy Item Specifications

Installation

Installation of Isolmant Top Incollapavimento

Isolmant Top Incollapavimento is particularly suitable in cases where you want to obtain a simple and fast type of installation like that floating and stable and safe like the glued one.



This installation method, defined as “hybrid”, is possible thanks to the presence of a tough adhesive layer, specific for the direct anchoring of the flooring, inserted in the upper part of the mat and protected by a silicone film.

Installation of Isolmant Top Incollapavimento
Strong adhesive layer for direct bonding of flooring

1/3 Laying the matt

 After cleaning the laying surface, it is recommended to lay a vapor barrier against rising damp before the mat.



Spread the mat with the non-adhesive side facing down, taking care to place it against the walls. The flap of film will be useful in the following steps.

1/3 Laying the matt
Lay the matt

2/3 Laying the flooring

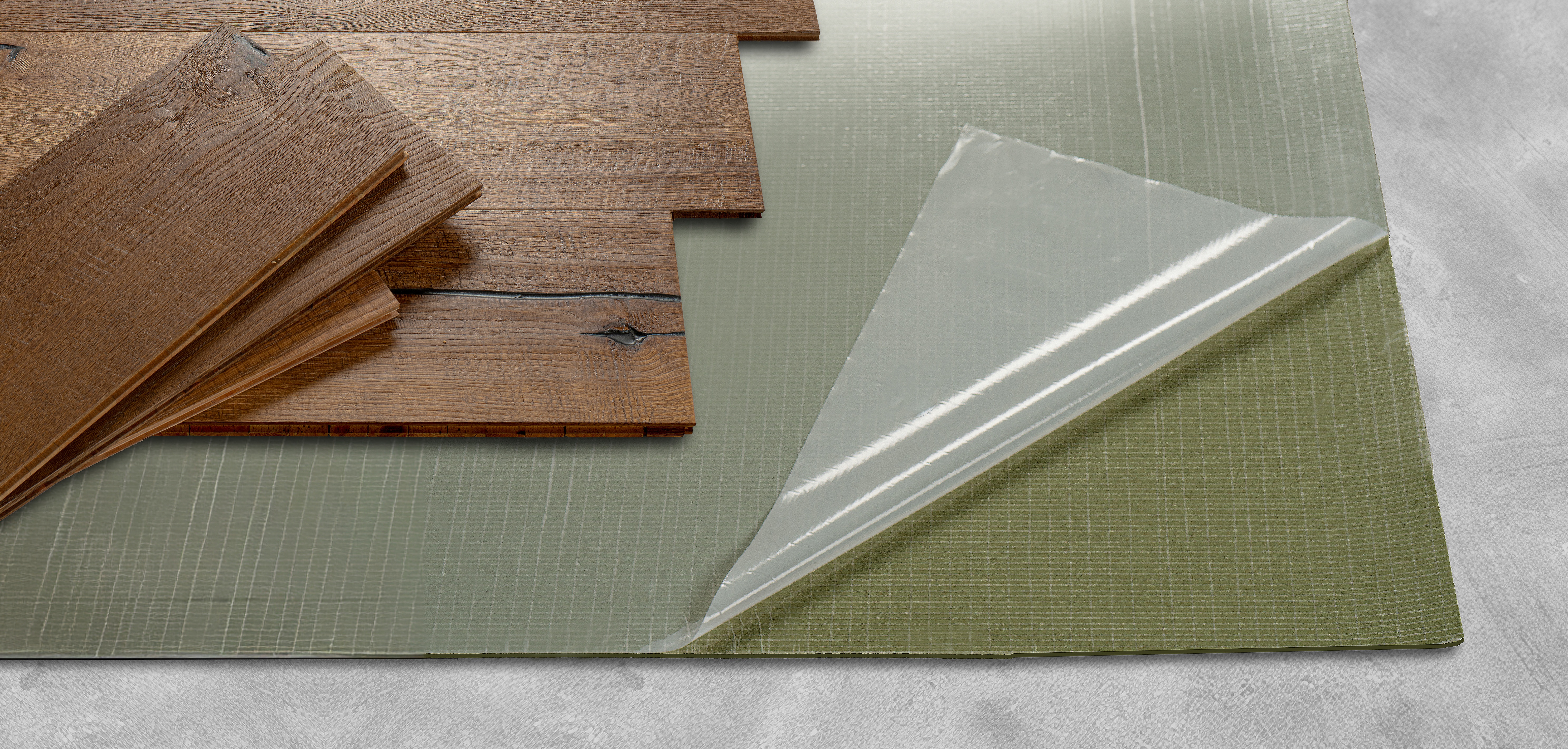

Place the slats on the silicone sheet and then remove it gently: in this way the flooring will fix itself to the adhesive layer of the mat.



For the first slats a special silicone sheet must be used, while for the subsequent slats the same protective film of the mattress is used.

2/3 Laying the flooring
Lay the slats

3/3 Immediately walkable floor

The laying of the flooring directly on Isolmant Top Incollapavimento is carried out without the use of adhesives: this is why the installation results in a fast, clean and odor-free work. After the installation of the last plank, the floor can be walked on immediately, as no drying times are required.



A real installation system that allows you to create a glued installation without using any glue, thus combining the advantages of floating and glued installation.

3/3 Immediately walkable floor
Immediately Walkable Floor
