Isolmant IsolTile AD

Isolmant IsolTile AD

Isolmant IsolTile AD

Isolmant IsolTile AD

Resilient elastodynamic acoustic layer with low thickness, desolidarising and reinforcing, designed for underflooring applications (tile, stone, wooden flooring). Coated on the lowerside with a positioning adhesive layer, specifically designed to be installed on the existing flooring. To be installed with the screen printed side facing up.



Thickness 2 mm.





Floor system: specific for the application of hybrid laying, semi-floating laying of wooden or ceramic floors / laying on laying.

Immagine 1
Menu

Advantages

• This product ensures a significant increase in acoustic insulation against impact noise, in case of renovation and new construction.

• It can be used in all environments, in both residential and tertiary contexts.

• Low thickness, does not require modifications to existing levels.

• Low thermal resistance (compatible with underfloor heating systems, even when laid under the floor). Allows glue installation of finishes directly on radiant floors with low thickness/low inertia.

• Easy to install.

• Adhesive layer adheres to the existing floor or other smooth, clean surface without the need to abrade or treat it with adhesives.

• Product supplied with accessories for correct installation.

• This product does not require any special glues to install.

• This product prevents large tiles from cracking.

Isolmant GreenPlanet

• Volatile Organic Compounds free (VOC A+).

• Manufactured with low environmental impact.

• Contributes to achieve credits for the environmental certification of a building according to LEED or ITACA standards.

• This product can be disposed of according to EWC n. 170604.

• Complies with the requirements defined by the Italian CAM Edilizia for acoustic and thermal insulation materials regarding the request for high acoustic insulation performance, the percentage of recycled material and the absence of hazardous substances.

Sustainability

Item Specifications

Resilient elastodynamic acoustic layer with low thickness, desolidarising and reinforcing, designed for underflooring installations on tile, stone, wooden flooring. This product is made of HD expanded polypropylene material which is coated on the upper side with special Fibtec XP1 fabric (black screen-printed and calendered polypropylene fabric for technical application) and removable adhesive on the lower side for installations on the existing flooring. (Isolmant IsolTile AD type).

Nominal thickness 2 mm, density 77 kg/m3 , thermal conductivity 0.037 W/mK.

Item Specifications Copy item specification

Features

Positioning adhesive layer

Isolmant IsolTile AD is made with a special positioning adhesive layer in the lower part of the sheet. This feature makes it specific application of "overlapping", that is the laying of a new finish on the existing flooring.



The use of IsolTile AD in overlapping cases avoids the annoying operation of pre-treating the ceramics to make them suitable for receiving the glue, allowing quick and dust-free interventions to be carried out. The positioning adhesive layer facilitates the work of the installer, however making the intervention reversible and therefore keeping the pre-existing flooring intact.

Positioning adhesive layer
The positioning adhesive layer is located on the underside of IsolTile AD.

Product kit

Isolmant IsolTile is a kit product and contains the accessories necessary for installation in the roll:



ACCESSORIES INCLUDED IN THE PACKAGE:



Band for splices: h 7.5 cm x L 20 m *
Perimeter band: h 3 cm x L 20 m **



* In the IsolTile BV version the strip for joints is equipped with an integrated vapor barrier, to guarantee the continuity function in the vapor barrier.
** The Isolmant Fascia Perimetrale included in the package is specific for the installation of IsolTile as an underfloor. When applying under screed, Isolmant Fascia Perimetrale Doppio Spessore or Isolmant Fascia Perimetrale Tecnica Reticolata must be used.

Product kit
Accessories included in the package

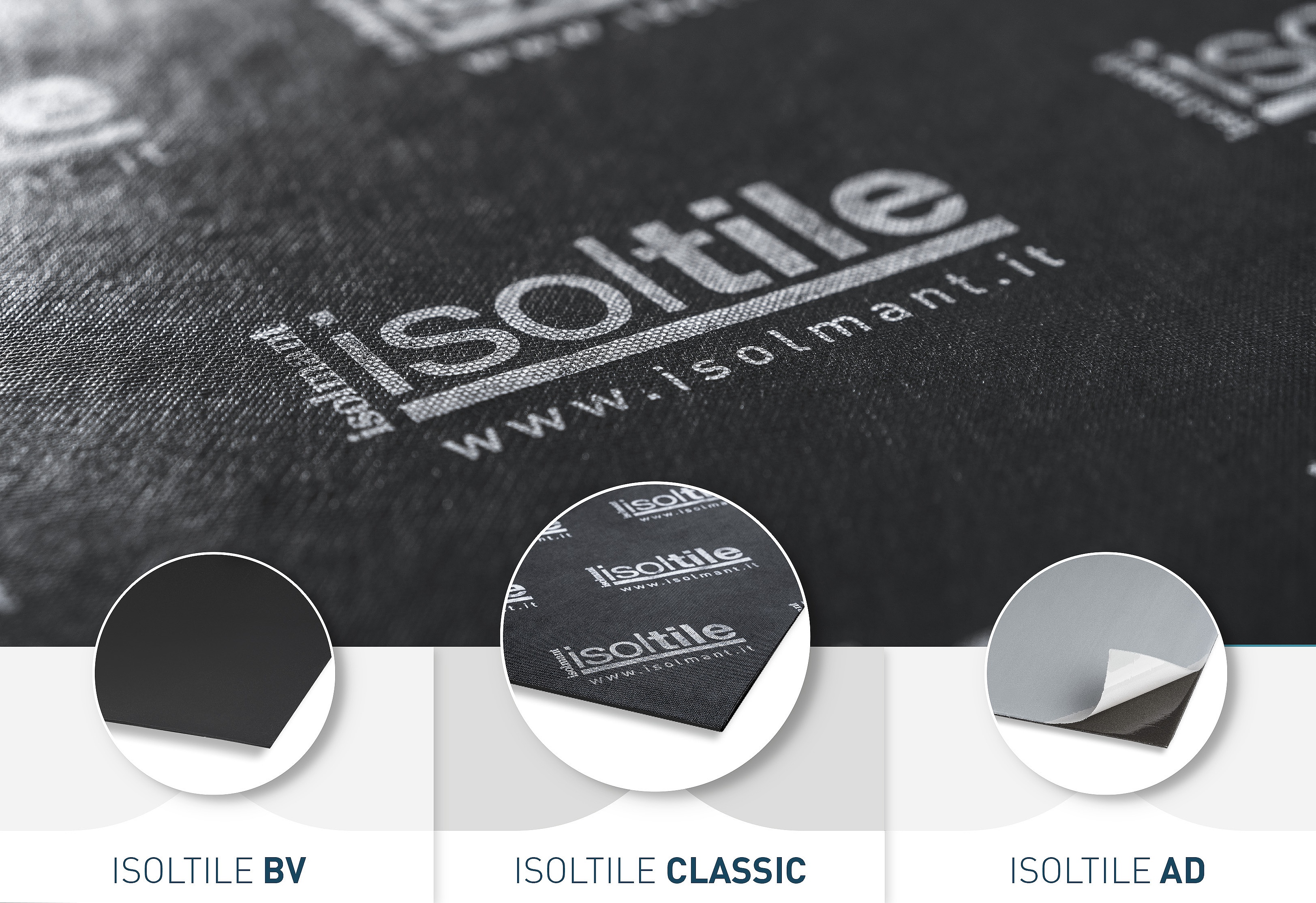

The three version of Isoltile

IsolTile is available in three versions:



IsolTile Classic
You recognize it immediately because it is screen printed on both sides. It is the historical version of IsolTile and also the most versatile and universal. It can be used both in applications under low thickness screeds (with or without radiant panel), and in underfloor applications with traditional glued laying.



IsolTile BV

It is the specific version for all applications where there is a demand for a vapor barrier, both under screed and under the floor. The underside does not have a silk-screened lap but is covered with fibtec XP2 (technical geotextile in polypropylene, black, calendered with integrated vapor barrier).




IsolTile AD

It is the specific version for underfloor applications with "overlapping". The positioning adhesive layer on the lower side allows the mat to be easily laid on the pre-existing flooring, which remains intact and can possibly be restored at a later time.

The three version of Isoltile
The three version of Isoltile
