IsolGypsum Telogomma Standard

IsolGypsum Telogomma Standard

IsolGypsum Telogomma Standard

IsolGypsum Telogomma Standard

Plasterboard sheet coupled with Isolmant Telogomma, a special elastodynamic EPDM rubber-based mass covering with mineral fillers. Its characteristics guarantee a high vibration damping, as well as an important acoustic insulation even at low frequencies. Specific solution to enhance the acoustic insulation of the false wall in combination with a traditional plasterboard sheet.



High-performance acoustic insulation, to be installed with plugs directly on to the existing wall or screwed onto a metal frame as a single or second slab.

Immagine 1

Advantages

• High acoustic insulation.
• High mechanical resistance.
• Unalterable over time.
• Unlimited durability.
• Non-toxic and non-allergenic.
• Easy installation.

Isolmant GreenPlanet

• Sustainable.
• Environment friendly.
• Recyclable.
• Environmentally friendly production.
• Volatile Organic Compounds free (VOC A+);
• Contributes to achieve credits for the environmental certification of a building according to LEED or ITACA standards.




• Complies with the requirements defined by the Italian CAM Edilizia for acoustic and thermal insulation materials regarding the percentage of recycled material and the absence of hazardous substances.

Item specifications

Massive elasto-dynamic insulation layer based on special compound EPDM rubber with mineral fillers, surface density 4 kg/m2, thickness 2 mm, coupled with 12.5 mm thick plasterboard, type A, D, H2 (type IsolGypsum Telogomma S/SI/D+R/D+S).
Nominal thickness 14.5 mm.

Item specifications Copy item specification

PANELS FEATURES

Four Combination - 1/4

IsolGypsum Telogomma is Isolmant's heavy layer made from a special compound EPDM rubber-based plaster with mineral fillers and a surface density of 4 kg/m2 suitable for enhancing soundproofing in lightweight structures, it becomes the ideal product as a second slab in double slab structures. Its technical characteristics guarantee high vibration damping, as well as significant soundproofing even at low frequencies.

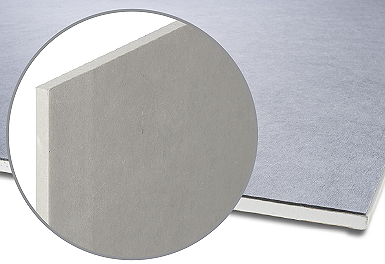

IsolGypsum Telogomma STANDARD



Isolmant Telogomma coupled with a type A panel, consisting of a core of rehydrated hemihydrate gypsum, covered on both sides with cellulosic material acting as external reinforcement.



Four Combination - 1/4

Four Combination - 2/4

IsolGypsum Telogomma is Isolmant's heavy layer made from a special compound EPDM rubber-based plaster with mineral fillers and a surface density of 4 kg/m2 suitable for enhancing soundproofing in lightweight structures, it becomes the ideal product as a second slab in double slab structures. Its technical characteristics guarantee high vibration damping, as well as significant soundproofing even at low frequencies.

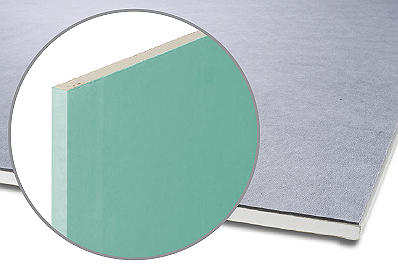

IsolGypsum Telogomma IDRO



Isolmant Telogomma coupled with a special H2 type panel, which can be used in humid environments such as bathrooms. The sheet is characterised by very low water absorption and excellent sealing at high humidity levels. Green cardboard coating on the visible side.





Four Combination - 2/4

Four Combination - 3/4

IsolGypsum Telogomma is Isolmant's heavy layer made from a special compound EPDM rubber-based plaster with mineral fillers
and a surface density of 4 kg/m2 suitable for enhancing soundproofing in lightweight structures, it becomes the ideal product as
a second slab in double slab structures. Its technical characteristics guarantee high vibration damping, as well as significant
soundproofing even at low frequencies.

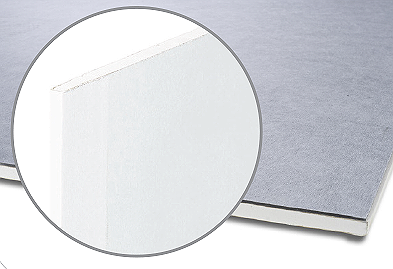

IsolGypsum Telogomma D+ SALUS



Isolmant Telogomma coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives, giving the product a high degree of surface hardness and mechanical strength. Thanks to Activ'Air® technology, the sheet is able to absorb and neutralise up to 70 % of the formaldehyde in indoor air.





Four Combination - 3/4

Four Combination - 4/4

IsolGypsum Telogomma is Isolmant's heavy layer made from a special compound EPDM rubber-based plaster with mineral fillers
and a surface density of 4 kg/m2 suitable for enhancing soundproofing in lightweight structures, it becomes the ideal product as
a second slab in double slab structures. Its technical characteristics guarantee high vibration damping, as well as significant
soundproofing even at low frequencies.

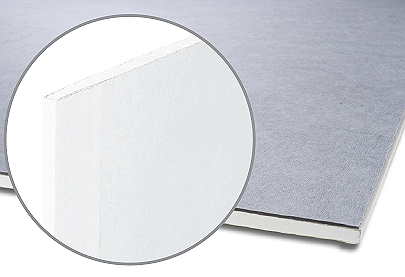

IsolGypsum Telogomma D+ RESISTO



Isolmant Telogomma coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives that give the product a high degree of surface hardness and mechanical strength. Ideal where high mechanical strength, load bearing capacity and impact resistance are required. It contributes to increased soundproofing.



Four Combination - 4/4
