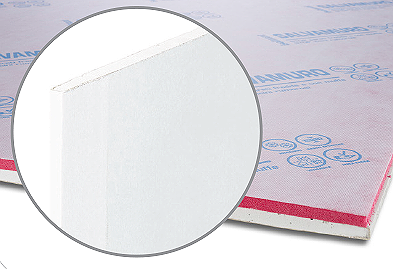

Specific solution for thermal and acoustic renovation of low thickness walls, consisting of a plasterboard panel coupled with a 10 mm thick layer of Isolmant Special. The innovative 'wall saver' technology works by improving the acoustic efficiency of the wall and eliminating the problem of cold walls, reducing the risk of condensation and mould.



High-performance acoustic and thermal insulation product to be directly installed on internal walls, partition and perimeter walls as well.

Immagine 1

Advantages

• High acoustic and thermal insulation.
• Unlimited durability.
• Reaction to fire.
• Low thermal conductivity.
• Non-toxic and non-allergenic.
• High mechanical resistance.
• Easy installation.
• Unalterable over time.
• Available in various formats.

Isolmant GreenPlanet

• Sustainable.
• Environment friendly
• Recyclable.
• Environmentally friendly production.
• Volatile Organic Compounds free (VOC A+).
• Contributes to achieve credits for the environmental certification of a building according to LEED or ITACA standards.



• Complies with the requirements defined by the Italian CAM Edilizia for acoustic and thermal insulation materials regarding the percentage of recycled material and the absence of hazardous substances.

Item specifications

Wall lining system made of Isolmant Special, 10mm thick, joined to a plasterboard panel 12.5 mm diffusion equivalent air layer thickness.
Thickness 22,5 mm.

Item specifications Copy item specification

PANELS FEATURES

Four Combination - 1/4

IsolGypsum Special is a panel made of 10 mm Isolmant Special, available in our unique #rossoisolmant colour and coated with a
specific fabric sheet, joined to four different types of plasterboard.





IsolGypsum Special STANDARD



Isolmant Special 10 mm coupled with a type A panel consisting of a core of rehydrated hemihydrate gypsum, covered on both sides with cellulosic material acting as external reinforcement.



Four Combination - 1/4

Four Combination - 2/4

IsolGypsum Special is a panel made of 10 mm Isolmant Special, available in our unique #rossoisolmant colour and coated with a
specific fabric sheet, joined to four different types of plasterboard.





IsolGypsum Special IDRO


Isolmant Special 10 mm coupled with a H2 type panel, which can be used in humid environments such as bathrooms. The panel is characterised by very low water absorption and excellent sealing at high humidity levels. Green cardboard coating on the visible side.





Four Combination - 2/4

Four Combination - 3/4

IsolGypsum Special is a panel made of 10 mm Isolmant Special, available in our unique #rossoisolmant colour and coated with a
specific fabric sheet, joined to four different types of plasterboard.





IsolGypsum Special D+ SALUS


Isolmant Special 10 mm coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives, giving the product a high degree of surface hardness and mechanical strength. Thanks to Activ’Air® technology, the panel can absorb and neutralise up to 70 % of the formaldehyde in indoor air.





Four Combination - 3/4

Four Combination - 4/4

IsolGypsum Special is a panel made of 10 mm Isolmant Special, available in our unique #rossoisolmant colour and coated with a
specific fabric sheet, joined to four different types of plasterboard.





IsolGypsum Special D+ RESISTO


Isolmant Special 10 mm coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives that give the product a high degree of surface hardness and mechanical strength. Ideal where high mechanical strength, load bearing capacity and impact resistance are required. It contributes to increased soundproofing and reaction to fire features.



Four Combination - 4/4
