IsolGypsum Perfetto Standard

IsolGypsum Perfetto Standard

IsolGypsum Perfetto Standard

IsolGypsum Perfetto Standard

It is the isolmant4you solution with the highest acoustic performance, ideal to increase the sound insulation of the walls, combining comfort and environmental respect. It is, in fact, a plasterboard panel coupled with Isolmant's special Fibra Fibtec, a recycled fibre in technical textile with increasing density along the thickness, with high acoustic and thermal performance, totally ecological, non-allergenic and recyclable.



This product can be directly installed by gluing or screwed onto metal frames (10 mm version).



Immagine 1

Advantages

• High acoustic and thermal insulation.
• Unlimited durability.
• Reaction to fire.
• Low thermal conductivity.
• Non-toxic and non-allergenic.
• High mechanical resistance.
• Easy installation.
• Unalterable over time.
• Available in various formats.

Isolmant GreenPlanet

• Sustainable.
• Environment friendly.
• Recyclable.
• Environmentally friendly production.
• Volatile Organic Compounds free (VOC A+).
• Contributes to achieve credits for the environmental certification of a building according to LEED or ITACA standards.



 Complies with the requirements defined by the Italian CAM Edilizia for acoustic and thermal insulation materials regarding the percentage of recycled material and the absence of hazardous substances.

Item specifications

Insulation layer consisting of a technical textile fibre panel with increasing density along the thickness. This is a laminated product, 10 or 20 mm 10 or 20 mm thick coated with 12.5 mm thick gypsum board, type A, D, H2 (type IsolGypsum Perfetto S/SI/D+R/D+S). 22.5 or 32.5 mm nominal thickness.

Item specifications Copy item specification

PANELS FEATURES

Four Combination - 1/4

IsolGypsum Perfetto is a 10 or 20 mm thick panel made of the special Fibtec fibre coupled with four different types of plasterboard.
Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency, as well as
the one with the highest sustainability value. Fibtec is in fact the special polyester fibre patented by isolmant: ecological, non-toxic
and of unlimited duration. A high-performance product that can increase the sound-insulating properties of a light wall by more
than 10 db. The version with Fibtec 10 mm can be glued or screwed on the frame.

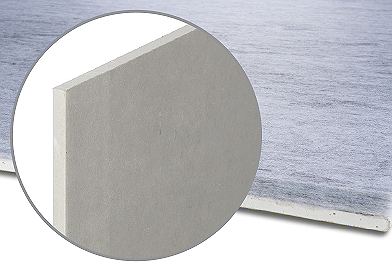

IsolGypsum Perfetto STANDARD



Isolmant Perfetto 10 or 20 mm coupled with a type A panel, consisting of a core of rehydrated hemihydrate gypsum, covered on both sides with cellulosic material acting as external reinforcement.



Four Combination - 1/4

Four Combination - 2/4

IsolGypsum Perfetto is a 10 or 20 mm thick panel made of the special Fibtec fibre coupled with four different types of plasterboard.
Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency, as well as
the one with the highest sustainability value. Fibtec is in fact the special polyester fibre patented by isolmant: ecological, non-toxic
and of unlimited duration. A high-performance product that can increase the sound-insulating properties of a light wall by more
than 10 db. The version with Fibtec 10 mm can be glued or screwed on the frame.

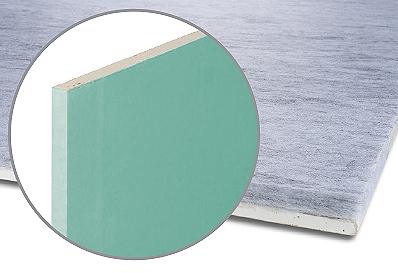

IsolGypsum Special IDRO


Isolmant Perfetto 10 or 20 mm coupled with a H2 type panel, which can be used in humid environments such as bathrooms. The sheet is characterised by very low water absorption and excellent sealing at high humidity levels. Green cardboard coating on the visible side.





Four Combination - 2/4

Four Combination - 3/4

IsolGypsum Perfetto is a 10 or 20 mm thick panel made of the special Fibtec fibre coupled with four different types of plasterboard.
Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency, as well as
the one with the highest sustainability value. Fibtec is in fact the special polyester fibre patented by isolmant: ecological, non-toxic
and of unlimited duration. A high-performance product that can increase the sound-insulating properties of a light wall by more
than 10 db. The version with Fibtec 10 mm can be glued or screwed on the frame.

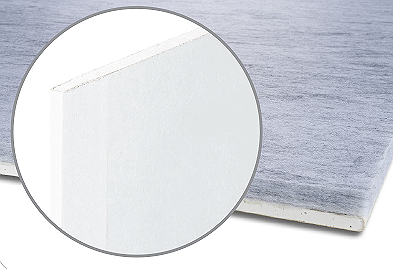

IsolGypsum Special D+ SALUS



Isolmant Perfetto 10 20 mm coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives, giving the product a high degree of surface hardness and mechanical strength. Thanks to Activ’Air® technology, the panel can absorb and neutralise up to 70 % of the formaldehyde in indoor air.





Four Combination - 3/4

Four Combination - 4/4

IsolGypsum Perfetto is a 10 or 20 mm thick panel made of the special Fibtec fibre coupled with four different types of plasterboard.
Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency, as well as the one with the highest sustainability value. Fibtec is in fact the special polyester fibre patented by isolmant: ecological, non-toxic and of unlimited duration. A high-performance product that can increase the sound-insulating properties of a light wall by more than 10 db. The version with Fibtec 10 mm can be glued or screwed on the frame.

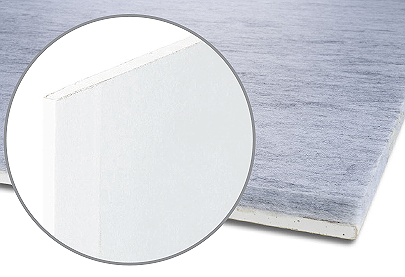

IsolGypsum Special D+ RESISTO



Isolmant Perfetto 10 20 mm coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives, giving the product a high degree of surface hardness and mechanical strength. Ideal where high mechanical strength, load bearing capacity and impact resistance are required. It contributes to increased soundproofing and reaction to fire features.



Four Combination - 4/4
