It is the isolmant4you solution with the highest acoustic performance, ideal to increase the acoustic insulation of the walls, combining the characteristic and nature of different acoustic insulators . It is, in fact, a plasterboard panel coupled with Isolmant Telogomma, a special elastodynamic EPDM rubber-based mass covering with mineral fillers, its characteristics guarantee a high vibration damping, as well as an important acoustic insulation at low frequencies; coupled in turn with Isolmant’s Fibtec, a recycled fibre in technical textile with increasing density along the thickness, with high acoustic and thermal performance, totally ecological, non-allergenic and recyclable.



The acoustic performance of the Fibtec fiber combined with that of the Telogomma for the best acoustic insulation in case of renovation works. It is available coupled with four different types of plasterboard in order to facilitate and speed up the renovation. It can be used with screws on metal frame or glued directly to the wall.

Immagine 1

Advantages

• High acoustic and thermal insulation.
• Low thermal conductivity.
• High mechanical resistance.
• Unalterable over time.
• Unlimited durability.
• Reaction to fire.
• Non-toxic and non-allergenic.
• Easy installation.
• Available in various formats.

Isolmant GreenPlanet

• Sustainable.
• Environment friendly
• Recyclable.
• Environmentally friendly production.
• Volatile Organic Compounds free (VOC A+).
• Contributes to achieve credits for the environmental certification of a building according to LEED or ITACA standards.



• Complies with the requirements defined by the Italian CAM Edilizia for acoustic and thermal insulation materials regarding the percentage of recycled material and the absence of hazardous substances.

Item specifications

Insulation layer consisting of a technical textile fibre panel with increasing density along the thickness coupled with compound EPDM rubber with mineral fillers, surface density 4 kg/m2; coupled with 12.5 mm thick plasterboard type A, D, H2 (type IsolGypsum Duo S/SI/D+R/D+S). 24,5 mm nominal thickness.

Item specifications Copy item specification

PANELS FEATURES

Four Combination - 1/4

IsolGypsum Duo is a 24.5 mm thick panel made of the Isolmant Telogomma and the special Fibtec fibre coupled with four different types of plasterboard. Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency.



IsolGypsum DUO STANDARD

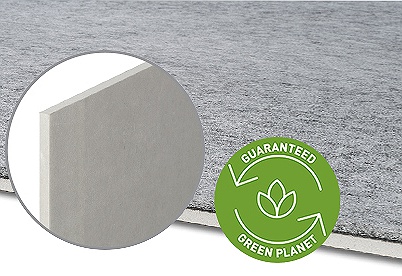

Isolmant Telogomma and Fibtec fiber coupled with a type A panel, consisting of a core of rehydrated hemihydrate gypsum, covered on both sides with cellulosic material acting as external reinforcement.



Four Combination - 1/4

Four Combination - 2/4

IsolGypsum Duo is a 24.5 mm thick panel made of the Isolmant Telogomma and the special Fibtec fibre coupled with four different types of plasterboard. Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency.



IsolGypsum DUO IDRO

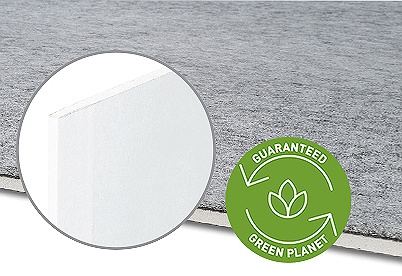

Isolmant Telogomma and Fibtec fiber coupled with a H2 type panel, which can be used in humid environments such as bathrooms. The sheet is characterised by very low water absorption and excellent sealing at high humidity levels. Green cardboard coating on the visible side.





Four Combination - 2/4

Four Combination - 3/4

IsolGypsum Duo is a 24.5 mm thick panel made of the Isolmant Telogomma and the special Fibtec fibre coupled with four different types of plasterboard. Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency.



IsolGypsum DUO D+ SALUS

Isolmant Telogomma and Fibtec fiber coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives, giving the product a high degree of surface hardness and mechanical strength. Thanks to Activ’Air® technology, the panel can absorb and neutralise up to 70 % of the formaldehyde in indoor air.





Four Combination - 3/4

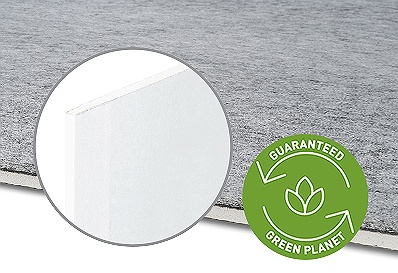

Four Combination - 4/4

IsolGypsum Duo is a 24.5 mm thick panel made of the Isolmant Telogomma and the special Fibtec fibre coupled with four different types of plasterboard. Thanks to its technical characteristics, this material is considered to be the material with the highest acoustic efficiency.





IsolGypsum DUO D+ RESISTO

Isolmant Telogomma and Fibtec fiber coupled with a D-type panel, with a higher density core and gypsum with glass fibre additives, giving the product a high degree of surface hardness and mechanical strength. Ideal where high mechanical strength, load bearing capacity and impact resistance are required. It contributes to increased soundproofing and reaction to fire features.



Four Combination - 4/4
